To realize the connection of fiber optic cable, we often need to use ODF(optical distribution frame), fiber termination box( rack mount fiber optic patch panel, indoor FTTH wall outlet) fiber distribution box for fiber management in the fiber optic link.
Fiber Distribution & Termination
With the coming of the 5G and big data era, the deployment of optical fibers has been growing, and with the growth, the management of optical transmission networks has become more difficult. In order to process a large number of optical fibers with lower cost and higher flexibility, we often need to use ODF, optical fiber terminal box, and optical fiber distribution box. Choosing the right fiber optic box is the key to successful cable management.
Fiber Patch Panel: The most common types of fiber patch panels are: Rack Mount, Wall mount, Outdoor, & DIN mount.
Fiber Terminal Box: Fiber optic terminal boxes can be divided into different types according to different methods, such as straight-through and branch types according to the optical cable connection method; some can be equipped with adapters while some can not; according to the shell material, it can be divided into metal shell fiber.

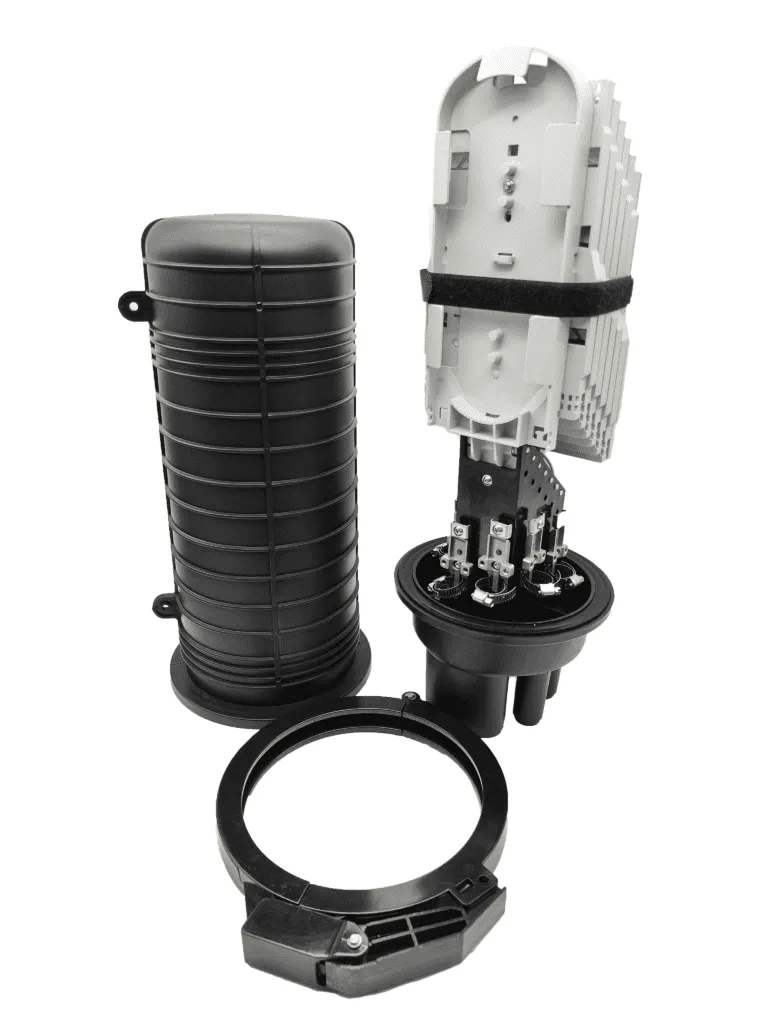

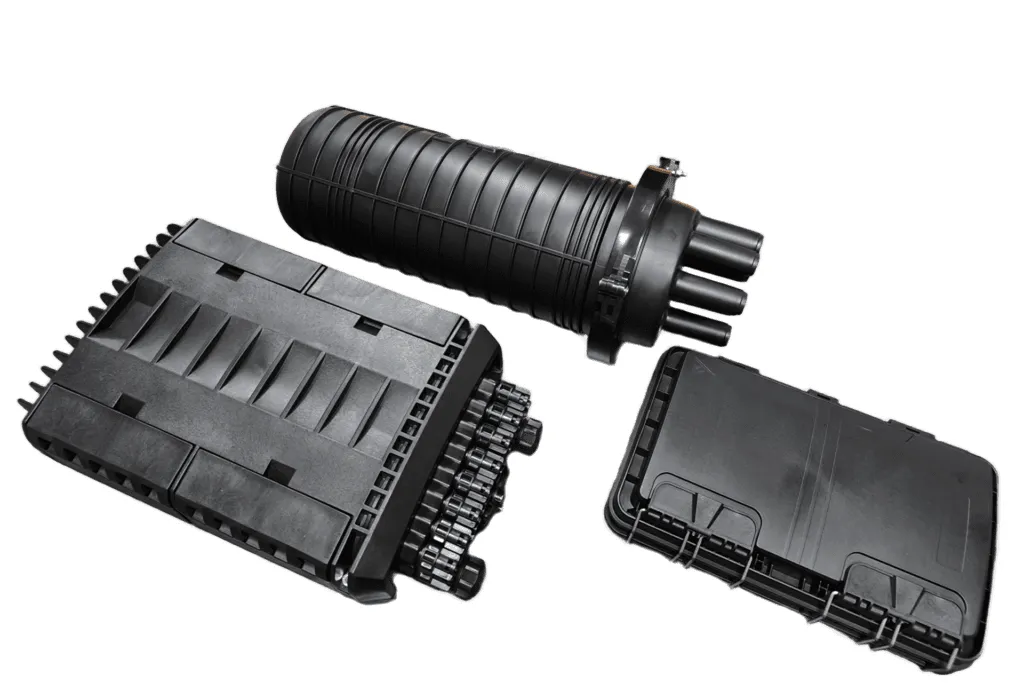

Fiber Splice Closure: For outside plant splice closure, there are two major types: horizontal splice closure and vertical splice closure. Horizontal types closure look like a flat or cylindrical case, they provide space and protection for fiber optic cable splicing and joint. Vertical type of fiber optic splice closure looks like a dome, thus they are also called dome type. They meet the same specification as the horizontal types. They are designed for buried applications.
Fiber Distribution & Termination Types
FTTH Drop Cable
Fiber cables armored with steel tape, aluminum tape, steel wire and others
Fiber Breakout Cable
strong enough to support itself between structures without using conductive metal.
Indoor Armored Fiber Optic Cable
Self -supporting aerial fiber optic cable with hanging wire and figure 8 shapes
Preterminated Fiber Cable

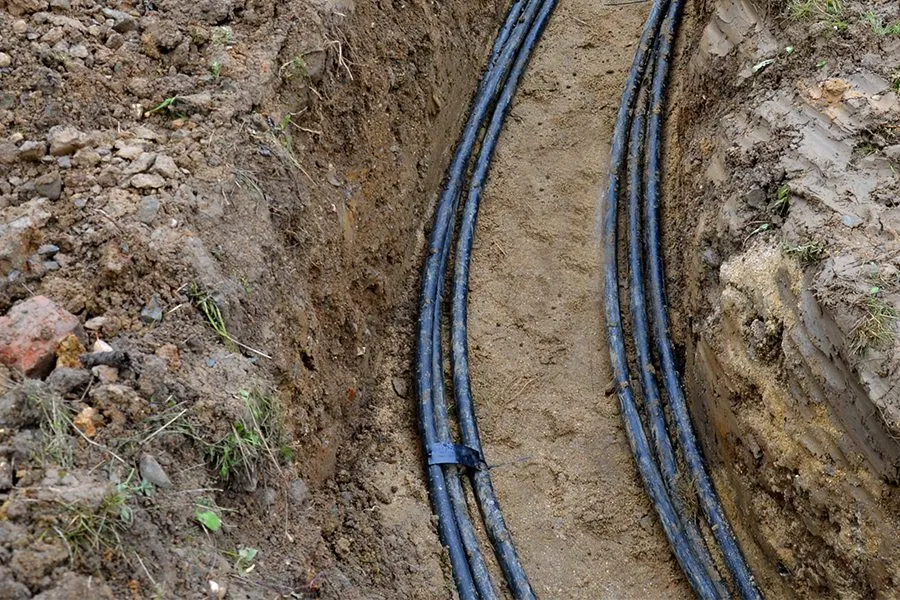

Direct buried fiber optic cable can be directly buried in the ground
Simplex Fiber Cable
HFC is a broadband telecom network that combines optical fiber and coaxial cable.
Duplex Fiber Cable
Fiber optic cables installed overhead with poles and fittings
Tight Buffer Cable
Air blown fiber and micro blown fiber cable for fast installation
LSZH Fiber Cable
Direct buried fiber optic cable can be directly buried in the ground
Fiber Distribution & Termination Applications

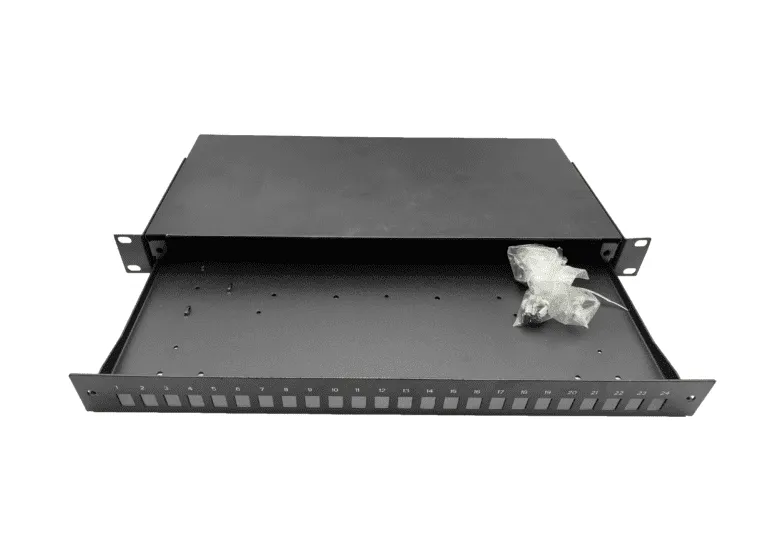

They are an excellent choice for entry terminals, computer rooms, telecommunication cabinets, primary cross-connects, and other controlled applications. Rack mount fiber optic termination boxes integrate fiber splicing, termination, distribution, storage, patching and management.
AIMIT:your trusted Fiber Optic cable manufacturer
- Factory Production: No intermediaries, direct from our facilities.
- Efficient Production: 13 production lines with a daily output of at least 1* 40HQ container.
- Comprehensive Testing: In-house laboratory for rigorous testing and quality assurance.
- OEM/ODM Support: Tailored solutions for over 100 telecom operators globally.
Fiber optic cable manaufcturing process
Fiber Optic Cable Manufacturing Process
- Coloring Fibers: Applying color codes for easy identification.
- Bundling Fibers: Grouping fibers into a core.
- Loose Tubing Fibers: Enclosing bundled fibers in protective tubing.
- Fibers Stranding: Arranging fibers in a specific configuration.
- Attenuation Testing: Evaluating signal loss characteristics.
- Packing: Preparing finished cables for shipment.
Please note that actual production in a fiber cable factory can be more intricate, but these steps provide a simplified overview for better understanding.
Find Other Fiber Optic Products
We are also manufacture Indoor Fiber Optic Cable, Customized fiber optic cable, MPO/MTP Cable with good quality and competitive quotation.
Have you find the cable you need or ask for customized support?
frequently asked question
Fiber Optic Distribution & Termination

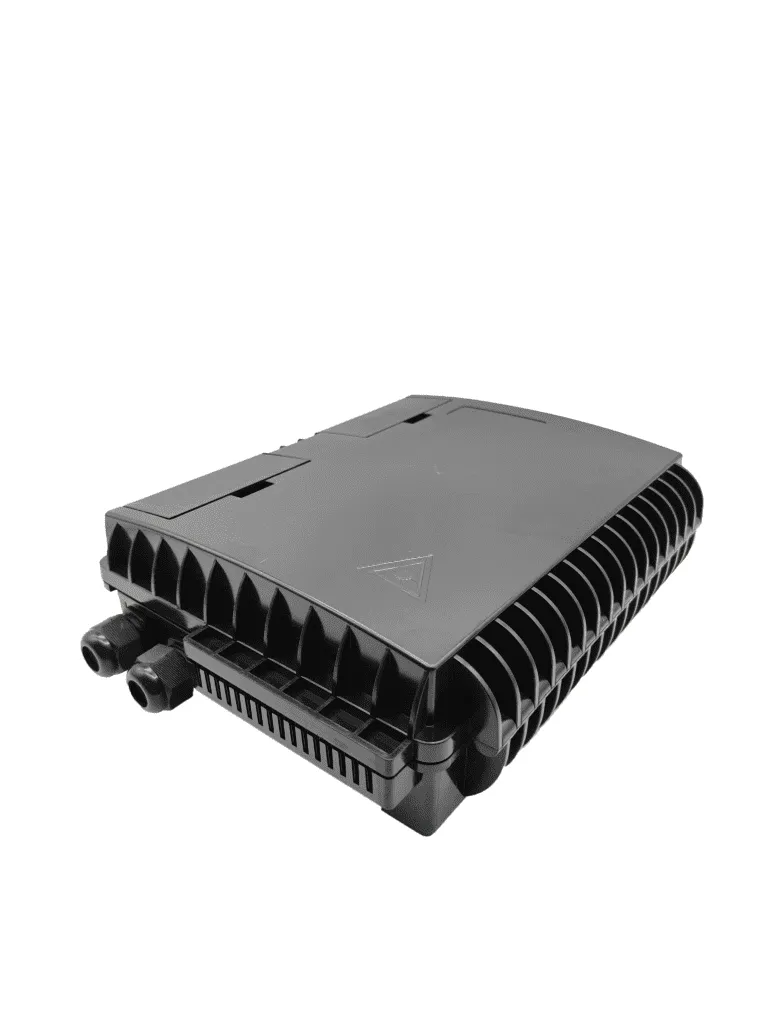

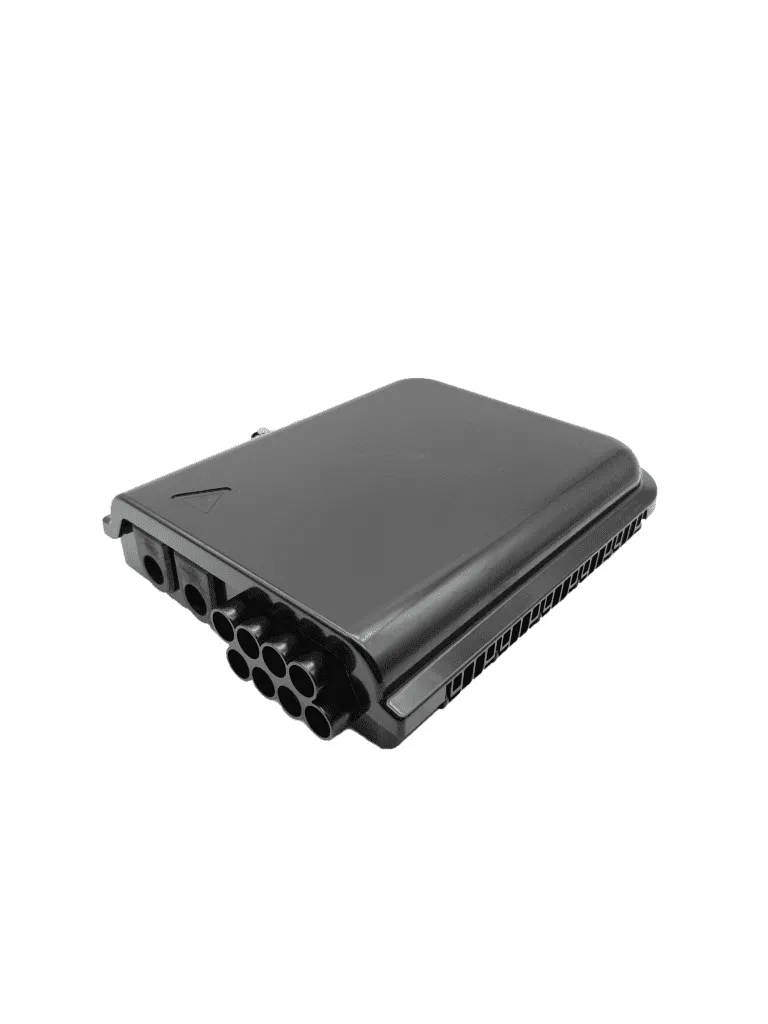

A Fiber Optic Distribution Box manages joint fusion, connections, and distribution of multi-core and single-core fibers, facilitating cable management in indoor and outdoor settings.
A Fiber Optic Distribution Box manages and protects fiber optic cables, facilitating efficient cable connections for indoor and outdoor use.
It includes a sturdy box body, a junction box, a distribution frame, and various ports for ingress and egress, typically made from steel or high-strength plastic with customizable interfaces.
It terminates optical fibers, facilitating splicing with pigtails in the field to connect incoming optical cables to network equipment.
It organizes and manages fiber optic connections, featuring adapters and splice trays to assist in the efficient distribution and termination of optical signals.
It centralizes fiber optic cable management, supporting signal distribution through integrated adapters and splice trays for efficient fiber organization.
Yes, especially multimode fibers which can be easily terminated in the field using specific kits and procedures to ensure proper setup.
A fiber patch panel is a hub for fiber cable management, routing each fiber strand from a bulk cable into individual or pairs of strands for organized connectivity.
A fiber patch panel organizes multiple fiber cables, segmenting them into manageable connections within a network’s distribution frame.
Distribution panels focus on distributing optical signals in fiber networks, whereas patch panels primarily manage physical cable connections in LANs and other network types.
Patch panels streamline network management/ cable management, allowing for easier connections, flexibility, and reduced costs in extensive network environments.
Fiber terminals are critical in connecting, splicing, and managing fibers from different cables, facilitating smooth integration with network devices.
It distributes fiber optic signals to various endpoints, organizing and protecting connections within network infrastructures.
They protect fiber splices from environmental damage and ensure the integrity of outdoor fiber installations by sealing and securing fiber optic cables.
It distributes fiber optic signals to multiple endpoints, optimizing network architecture by enabling flexible signal routing and connectivity.
The two main types are horizontal, which are flat or cylindrical, and vertical, which are more compact and suited for different mounting scenarios.
Effective splicing requires proper tools like cable strippers, cleavers, splicers, and protective equipment to ensure clean and durable fiber connections.
They organize and safeguard fiber optic splices, ensuring proper alignment and protection within fiber optic networks.
Splicing trays organize and protect individual fiber splices, supporting effective alignment and safeguarding against physical stress.
They vary from wall-mounted, cabinet-style for internal distributions, to overhead and underground models, each suited to different environmental and spatial needs.
It involves installing connectors on fiber cables to facilitate modular connections with network devices or other cables.
Consider port density and network scale to select a panel that offers adequate connectivity options and future scalability.
Typically, organizations use 24 to 48 ports per panel with up to four to six panels per rack, depending on network size and expansion plans.
Through RJ45 connectors and IDC blocks that route cable signals to their destinations, ensuring organized network traffic flow.
A good fiber closure protects against water ingress and environmental damage, maintaining the longevity and functionality of the fiber connections within.
It consists of a durable box body, fiber optic junction and distribution frames, and various ports for cable entry and exit, tailored with customizable interfaces.
It secures and manages fiber optic cable terminations, providing a reliable point for connecting fiber pigtails and extending network reach.
Fiber terminals act as nodes that manage connections from various cables to network devices, facilitating efficient signal distribution and network management.
Splice closures protect fiber splices from environmental exposure and mechanical damage, crucial for maintaining uninterrupted network service.
Horizontal splice closures offer streamlined, flat integration, while vertical splice closures provide a compact, cylindrical solution for vertical installations.
Fiber splices require precise tools for cutting and joining fibers, ensuring minimal signal loss and maximum alignment accuracy.
Options include wall-mounted for direct wall attachment, cabinet-style for large-scale distribution setups, overhead for flexible placement, and underground boxes for external applications.
Terminations involve fitting connectors to fibers, facilitating modular network changes and ensuring stable, high-quality connections.
Essential tools include strippers for coating removal, cleavers for precise fiber cutting, and splicers for joining fibers accurately.
It centralizes cable connections, simplifying network management and enhancing the structural integrity of the network layout.
Select based on needed port density, compatibility with existing network equipment, and future scalability to accommodate network growth.
By organizing and connecting various network cables through structured panel ports, it supports efficient data flow and easy network management.
