Description

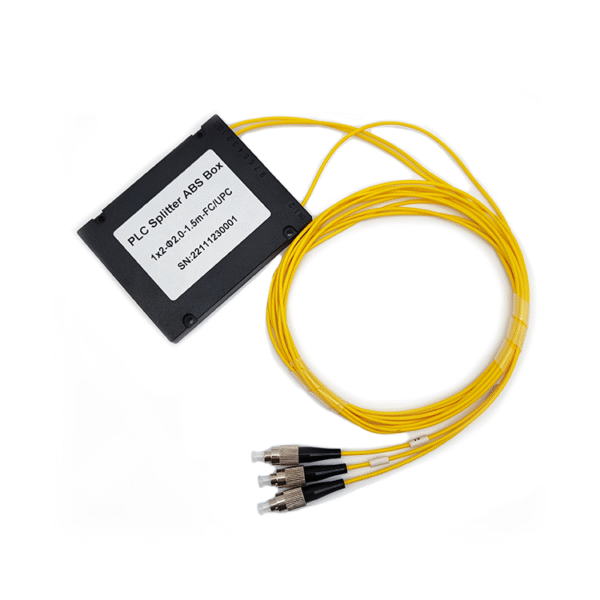

1x2 1x4 1x8 1x16 1x32 1x64 Fc Upc Abs Plastic Box Type Ftth Optical Fiber PLC Splitter | Fiber Optic Splitter | AIMIFIBER manufactured by AIMIFIBER.
Professional grade fiber optic product with reliable performance for telecom and data applications.
Specifications
| Unit | Port Configuration |
| 1x2 | |
| 1x4 | 1x8 |
| 1x16 | 1x32 |
| Fiber Type | |
| G657A or customer specified | Operating Wavelength |
| nm | 1260~1650 |
| Insertion Loss | Typ |
| dB | 4.0 |
| 7.4 | 10.5 |
| 13.7 | 16.7 |
| Loss Uniformity | Max |
| dB | 0.4 |
| 0.6 | 0.8 |
| 1 | 1.2 |
| Return Loss | Min |
| dB | 55 |
| 55 | 55 |
| 55 | 55 |
| Polarization Dependent Loss | Max |
| dB | 0.2 |
| 0.2 | 0.3 |
| 0.3 | 0.3 |
| Directivity | Min |
| dB | 55 |
| 55 | 55 |
| 55 | 55 |
| Wavelength Dependent Loss | Max |
| dB | 0.3 |
| 0.3 | 0.3 |
| 0.5 | 0.5 |
| Temperature Stability(-40~85 °C) | Max |
| dB | 0.5 |
| 0.5 | 0.5 |
| 0.5 | 0.5 |
| Operating Temperature | °C |
| -40~85 | Storage Temperature |
| °C | -40~85 |
Features & Applications
- Fiber Optical Splitter
- Plc Splitter
- Fiber Optic Splitter
- Ftth
- Fc Upc
- PLC Splitter Box
Contact AIMIFIBER for custom specifications, bulk pricing, and OEM/ODM solutions.
