Description

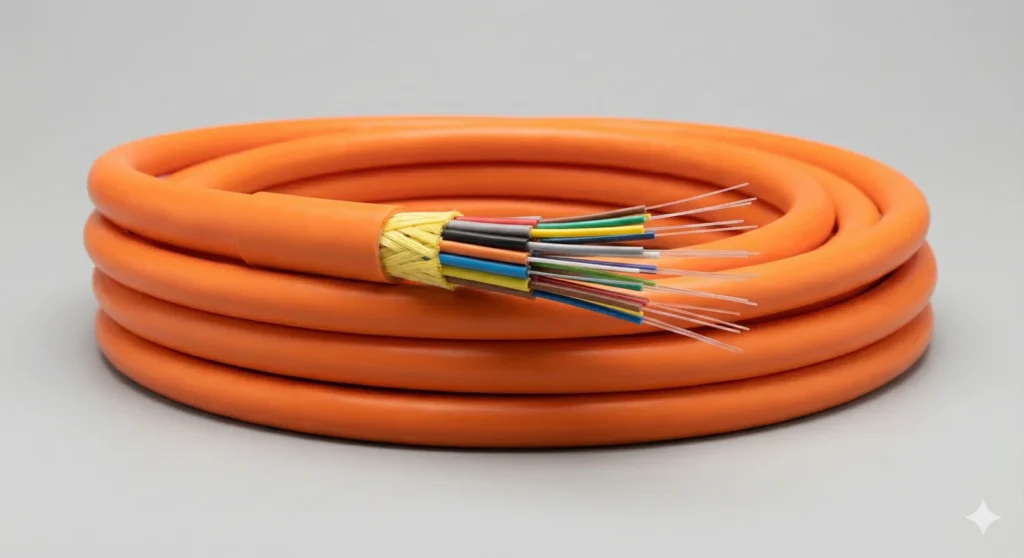

GJFJV is a multi-core indoor distribution cable built around 900 µm tight-buffer fibers with aramid yarn strength members and a PVC or LSZH outer jacket. The construction strips cleanly for quick terminations—ideal for risers, IDF/MDF rooms, and campus/building backbones.
Where it’s used

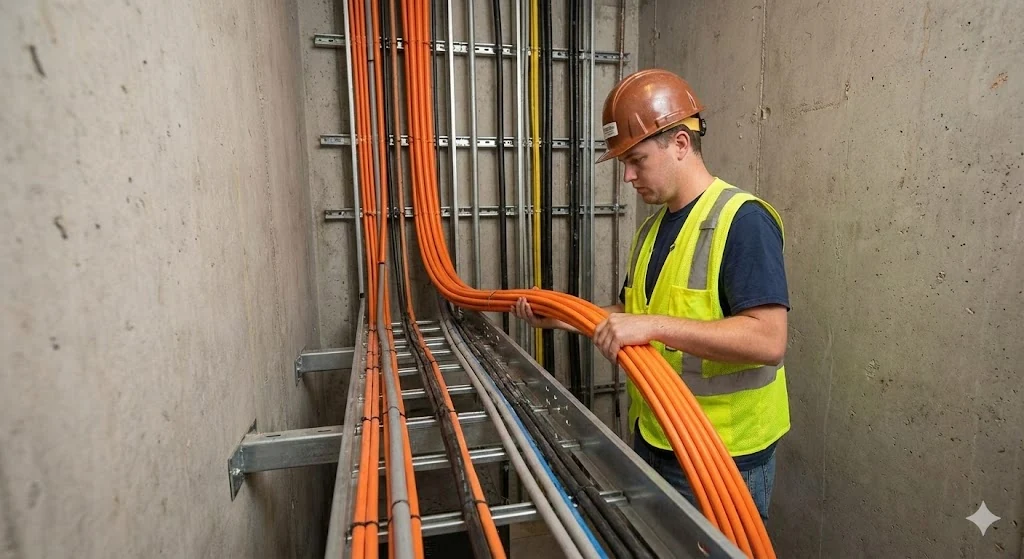

- Vertical risers and building backbones
- Data rooms, patch fields, and campus interiors
- Direct termination to connectors (no fan-out kits required)
- Pre-terminated trunk assemblies for rapid turn-up
Construction & Options

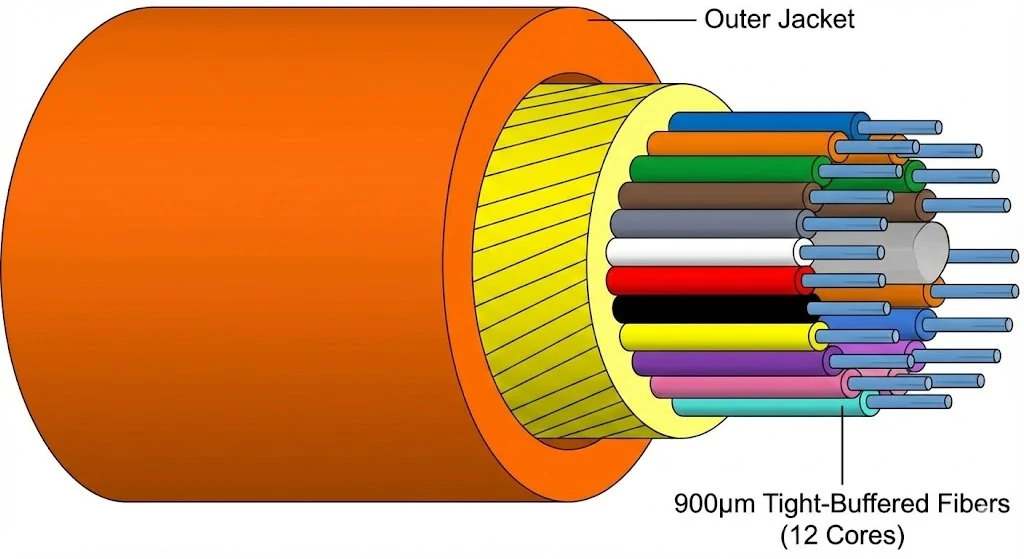

- 900 µm tight-buffer fibers inside common jacket; PVC or LSZH available.
- Aramid yarn strength members for tensile performance.
- Temperature (transport/storage/operate): −20 °C to +60 °C; installation −5 °C to +50 °C.
- Color code: TIA/EIA-598 fiber/tube sequence (Blue→Aqua).
Fiber Types & Bend Guidance (typical)
- OS2 G.652D / G.657A1 / G.657A2; typical attenuation 0.36/0.22 dB/km @1310/1550 nm; minimum fiber bend radius down to 7.5 mm with G.657A2.
Specifications (Mechanical – representative builds)
| Cable code | Fiber count | Nominal OD (mm) | Weight PVC (kg/km) | Weight LSZH (kg/km) | Tensile (long/short) N | Crush (long/short) N/100 mm | Bend radius (dynamic/static) |
|---|---|---|---|---|---|---|---|
| GJFJV(H)-4F | 4 | 4.8 ± 0.3 | 16.0 | 18.0 | 130 / 440 | 300 / 1000 | 20D / 10D |
| GJFJV(H)-6F | 6 | 5.1 ± 0.3 | 20.0 | 23.0 | 130 / 440 | 300 / 1000 | 20D / 10D |
| GJFJV(H)-8F | 8 | 5.6 ± 0.3 | 27.0 | 31.0 | 130 / 440 | 300 / 1000 | 20D / 10D |
| GJFJV(H)-12F | 12 | 6.2 ± 0.3 | 32.0 | 36.0 | 130 / 440 | 300 / 1000 | 20D / 10D |
| GJFJV(H)-24F | 24 | 8.1 ± 0.3 | 53.0 | 57.0 | 400 / 1320 | 300 / 1000 | 20D / 10D |
Note: For 48–144F, supply as micro-distribution (250 µm sub-units) on request to keep OD manageable while maintaining tight MBR; we’ll provide the exact OD/weight at quote time (see micro distribution family in the manual).
Optical Characteristics (typical)
| Fiber type | Attenuation (typ.) dB/km @1310/1550 nm | Attenuation (max.) dB/km @1310/1550 nm | Min. fiber bend radius (mm) |
|---|---|---|---|
| G.652D | 0.36 / 0.22 | 0.5 / 0.4 | 16 |
| G.657A1 | 0.36 / 0.22 | 0.5 / 0.4 | 10 |
| G.657A2 | 0.36 / 0.22 | 0.5 / 0.4 | 7.5 |
Compliance & Standards
- IEC 60794-2, GR-409 indoor cable framework; CPR/CE, RoHS/REACH materials on request.
Key Benefits
- Fast termination: 900 µm tight-buffer cores strip cleanly for field or factory connectorization.
- Strong & compact: Aramid yarn delivers tensile performance without bulky armor.
- Code-ready jackets: PVC or LSZH builds for region-specific fire and smoke requirements.
- Broad fiber choice: OS2 and OM classes, including bend-insensitive G.657 for tight spaces.
- Scales to high counts: 4–24F standard; 48–144F via micro-distribution to control OD and weight.
Applications
- Building backbones and risers
- Data center and enterprise distribution
- Pre-terminated indoor trunks
- Interconnects in ODFs, cabinets, and equipment rooms
Ordering Information (example)
Format: GJFJV(H)-[fiber]F-[OS2/OM3/OM4]-[PVC/LSZH]-[jacket color]-L[reel length]
Example: GJFJV(H)-24F-OS2-LSZH-YELLOW-L2000m

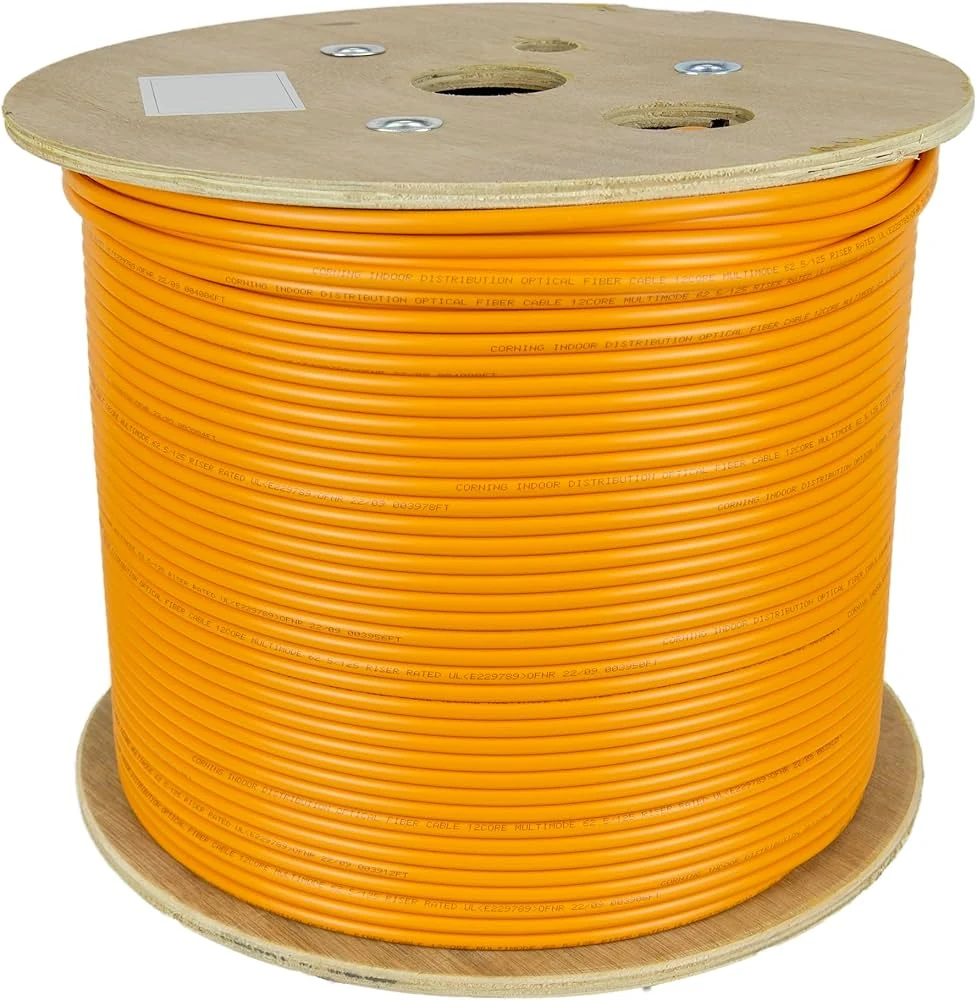

Fiber color sequence per TIA/EIA-598; standard reel length 2000 m (others on request).
FAQ
Q1. What’s the difference between distribution and breakout cable?
Distribution uses 900 µm tight-buffer fibers within one common jacket (smaller OD, lower cost). Breakout uses multiple simplex sub-units (larger OD, more rugged per-fiber).
Q2. Can you supply riser/plenum versions for North America?
Yes—PVC/LSZH builds are available; project-specific OFNR/OFNP statements can be provided at quote.
Q3. What bend limits should I observe?
Use ≥20D during install and ≥10D in service for the cable; fiber classes like G.657A2 allow 7.5 mm min bend at the fiber level.
Q4. Do you provide CPR documentation for EU tenders?
Yes—DoP/CPR (Eca–Dca, build-dependent) available on request.
Q5. What temperature ranges apply?
Transport/Storage/Operation −20 °C to +60 °C, Installation −5 °C to +50 °C.
