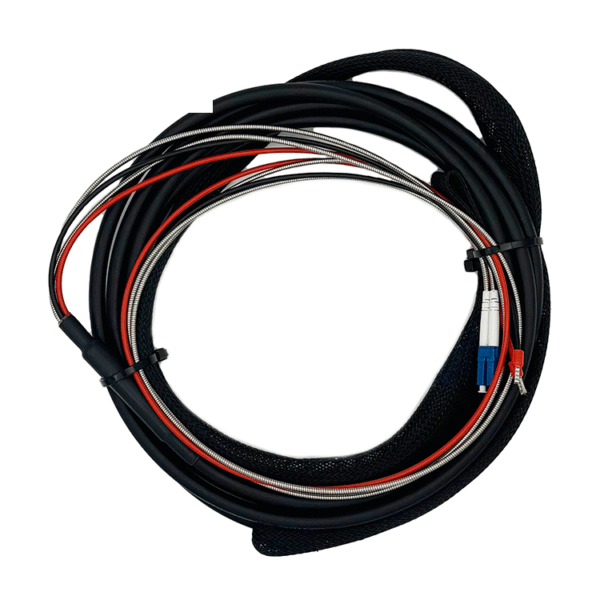

Outdoor Hybrid DC Fiber Patch Cable 16awg Wire Armored Outdoor Duplex LC/UPC Fiber 18" Breakout On Both Ends FTTA Patch Cord | Patch cord/ pigtail | AIMIFIBER manufactured by AIMIFIBER.
Professional grade fiber optic product with reliable performance for telecom and data applications.
Specifications
| Fiber Type | G657A2 |
| Mode field diameter at 1310um | 8.6~9.5±0.4 μm |
| Cladding diameter | 125.0±0.7 μm |
| Core concentricity error | ≤0.5 μm |
| Cladding non-circularity | ≤1.0 % |
| Zero dispersion wavelength | 1300nm ~ 1324nm |
| Zero dispersion slope | ≤0.092 ps/(nm²·km) |
| Cable cut-off wavelength | ≤1260 nm |
| Proof stress | ≥0.69 Gpa |
| Polarization mode dispersion | ≤0.2 ps/km |
Features & Applications
- Fiber Optic Patch Cord
- Patch Cord
- FTTA Patch Cord
- Fiber Patch Cord
- Optic Patch Cord
Contact AIMIFIBER for custom specifications, bulk pricing, and OEM/ODM solutions.
