Description
SM Stranded Loose Tube Non-metallic Strength Member Non-armored Fiber Optic Cable | Outdoor fiber optic cable | AIMIFIBER manufactured by AIMIFIBER.
Professional grade fiber optic product with reliable performance for telecom and data applications.
Specifications

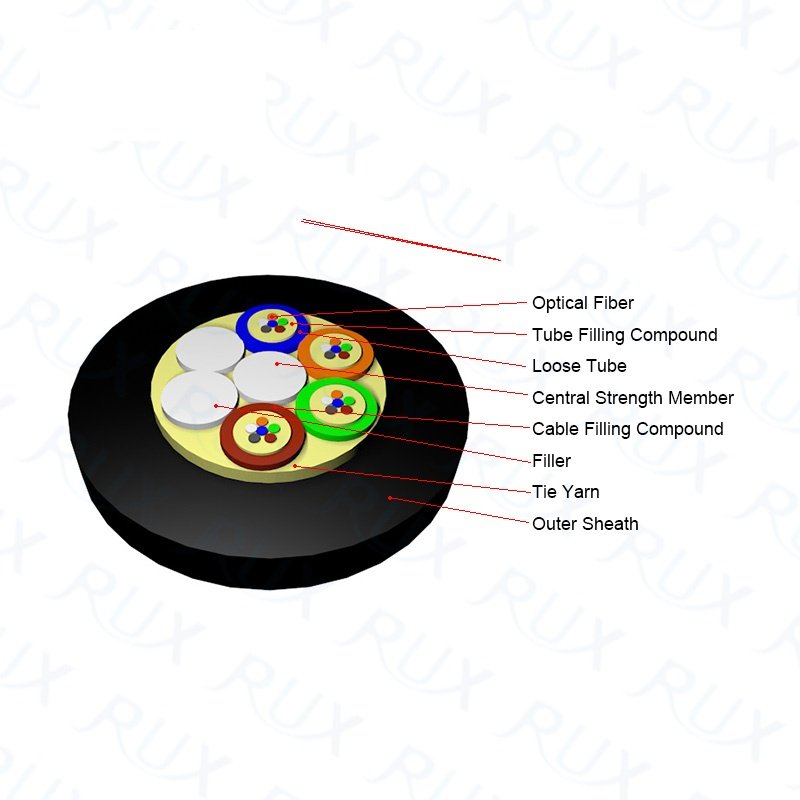

| Item | Central strength member |
| FRP | OD: 2.0mm(8,12,16,24,36 fibers) |
| 2.3mm(48,72 fibers) | 2.5mm(96 fiber) |
| 3.0mm(144 fiber) | Loose tube |
| PBT | OD: Nom.2.0mm(8,12,16,24,36 fibers) |
| OD:Nom.2.2mm(48,72,96,144 fibers) | Thickness:0.3mm |
| Filler | Plastic |
| OD: 1.95mm(8,12,16,24,36 fibers) | 2.15mm(48,72,96,144 fibers) |
| Rip-cord | 3 strands per pcs(Symmetrial distribution in the sheath) |
| Water-blocking tape | 20mm*0.25mm(8,12,16,24,36 fibers) |
| 22mm*0.25mm(48,72 fibers) | 28mm*0.25mm(96 fiber) |
| 36mm*0.25mm(144 fiber) | Outer sheath |
| MDPE | Thickness:2.0mm |
Features & Applications
- GYFTY
- Non-armored Cable
- Outdoor fiber optic cable
- optical cable for telecom
- 250um fiber
- Fiber Optic Cable
Contact AIMIFIBER for custom specifications, bulk pricing, and OEM/ODM solutions.
