Description
16-Port Fiber Distribution Box for FTTx Networks

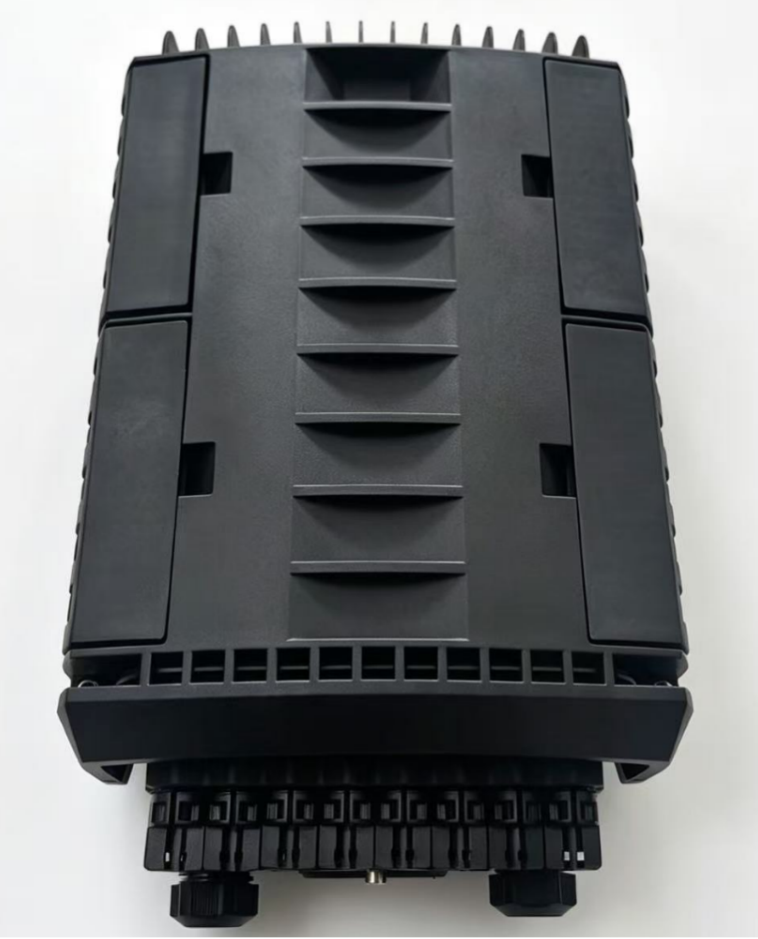

The AIMIFIBER AM-FDB-16A8-PA-14 is an outdoor fiber distribution box for splicing, splitting and SC/APC subscriber connections. PLC splitter options are 1:16 or 1:8 with SC/APC terminations. The supplied datasheet describes the 1:16 configuration with 16 SC/APC adapters and 16 one-meter G.657.B3 pigtails; the component quantities for a 1:8 configuration are confirmed with the order.
Technical Specifications
| Model | AM-FDB-16A8-PA-14 |
|---|---|
| Subscriber drop ports | 16 |
| Splitter | 1:16 or 1:8 PLC splitter with SC/APC terminations; splitter quantity and layout confirmed with the order |
| Adapters | 16 × SC/APC installed |
| Pigtails | 16 × G.657.B3 single-mode, 1 m, SC/APC installed |
| Dimensions | 380 × 245 × 130 mm |
| Color | Black |
| Distribution cable capacity | Up to 24 optical fibers |
| Distribution cable diameter | Ø8–Ø18 mm for mid-span and branch cables |
| Drop cable size | 2 × 3 mm flat cable to Ø7 mm round cable, using the applicable sealing plug |
| Ingress protection | IP68 stated in the datasheet; exact-model certificate pending |
| Splice capacity | Offered configuration: 36 fibers; final manufacturer confirmation pending |
| Housing material | PP+GF specified; manufacturer material confirmation pending |
Cable Routing and Installation

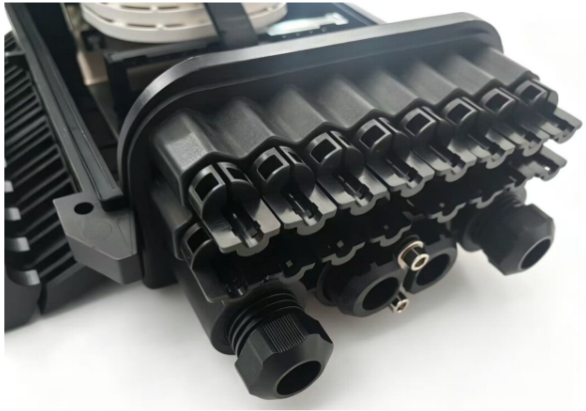

The datasheet describes mid-span and branch cable routing, with an oval mid-span port, two branch ports and 16 sealed drop ports. The final port drawing and sealing documentation are pending.
Installation options specified in the datasheet include outdoor wall, circular pole, aerial and underground register or chamber mounting. Underground installation and retained IP68 sealing after cable work require confirmation for the final configuration.
Fiber Management and Service Access
- Mid-span access: the datasheet describes storage of an uncut loose-tube loop and selective splicing of fibers feeding the box.
- Service access: a removable tray-holder provides access to loose tubes, bare fibers and splice reserves.
- Fiber organization: internal routing separates loose tubes and bare fibers for later maintenance.

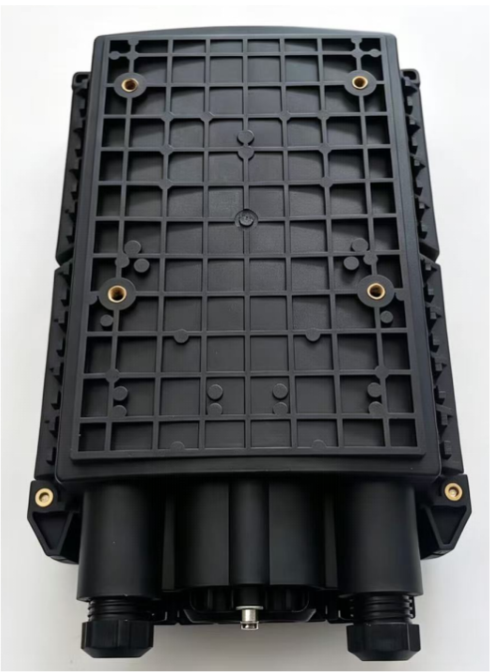

- Mounting options: wall and circular-pole installation, with the mounting hardware specified in the order.
Final mid-span drawings and fiber-management documentation are subject to manufacturer confirmation.
Specified Components
- 1:16 or 1:8 PLC splitter with SC/APC terminations, as specified in the approved order configuration
- 16 SC/APC adapters and 16 G.657.B3 SC/APC pigtails, 1 m each
- Splice trays and 60 mm heat-shrink sleeves for the offered 36-fiber capacity, subject to final BOM confirmation
- Sealing plugs, insulating tape, mastic sealant, fiber-protection tubes, cable ties and fixing rings
- Wall and pole mounting hardware; installation accessories to be confirmed with the order
Datasheet and Documentation
Download the AM-FDB-16A8-PA-14 technical datasheet (PDF)
The supplied datasheet is a project configuration document dated September 14, 2026, and shows the 1:16 configuration. The 1:8 option is available separately; request its configuration details when ordering. It identifies several manufacturer declarations, certificates and test reports as pending. IP68 certification, housing material, final splice capacity, impact and flame ratings, and optical test results must be confirmed for the exact supplied configuration before specification approval.
Configuration Questions
What is the subscriber capacity?
The enclosure described here has 16 physical subscriber drop ports. A 1:16 splitter provides 16 optical outputs, while a single 1:8 splitter provides eight. The splitter ratio does not change the physical port count; populated connections and component quantities depend on the ordered configuration.
Can I specify a 1:8 splitter?
Yes. A 1:8 PLC splitter is available as an alternative to 1:16. Specify the splitter quantity, populated subscriber connections and SC/APC component requirements when requesting a quotation.
Is an IP68 certificate included?
The datasheet specifies IP68, but marks the exact-model certificate as pending. Request the applicable documentation before approving the product for your project.
Request a Project Quotation
Send your quantity, cable sizes, mounting method and documentation requirements to sophie@aimifiber.com. Reference model AM-FDB-16A8-PA-14 for configuration and pricing confirmation.
