Description
16-Core Fiber Access Terminal with 1:16 PLC Splitter
The GPX147-FAT2131SD-16G is a 16-core outdoor fiber access terminal supplied with one 1:16 PLC splitter and SC/APC connectivity. The enclosure provides IP65 protection and supports UL 94 flammability requirements. It is compatible with G.652.D, G.657.A1, G.657.A2 and G.657.B3 single-mode fibers. Its compact 328 × 258 × 87 mm design combines fiber routing, splitting and subscriber connections in one box for FTTx distribution points.
Technical Specifications
| Model | GPX147-FAT2131SD-16G |
|---|---|
| Product type | Outdoor fiber access terminal / FAT |
| Fiber capacity | 16 cores |
| Installed splitter | 1 × 1:16 PLC splitter |

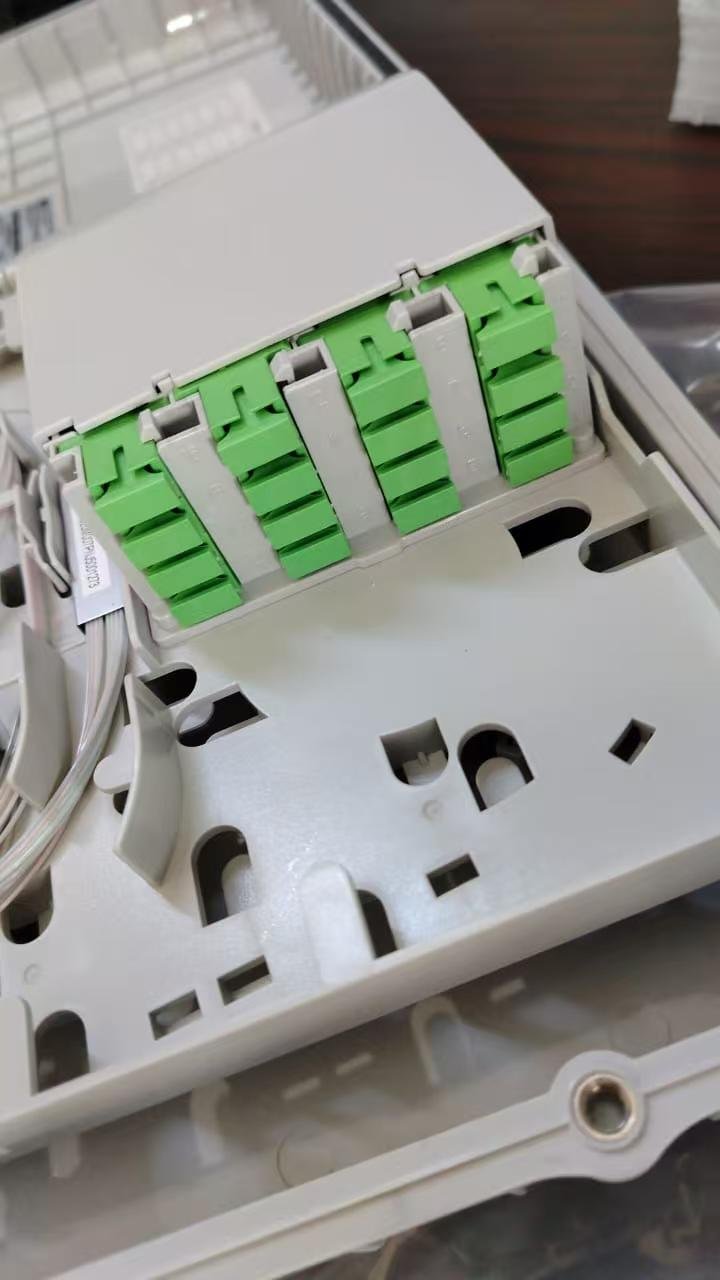

| Connector interface | SC/APC |
| Dimensions | 328 × 258 × 87 mm |
| Ingress protection | IP65 |
| Flammability standard | UL 94 |
| Compatible fiber types | G.652.D, G.657.A1, G.657.A2 and G.657.B3 single-mode fiber |
| Housing color | Light gray / white |
Internal Fiber Management

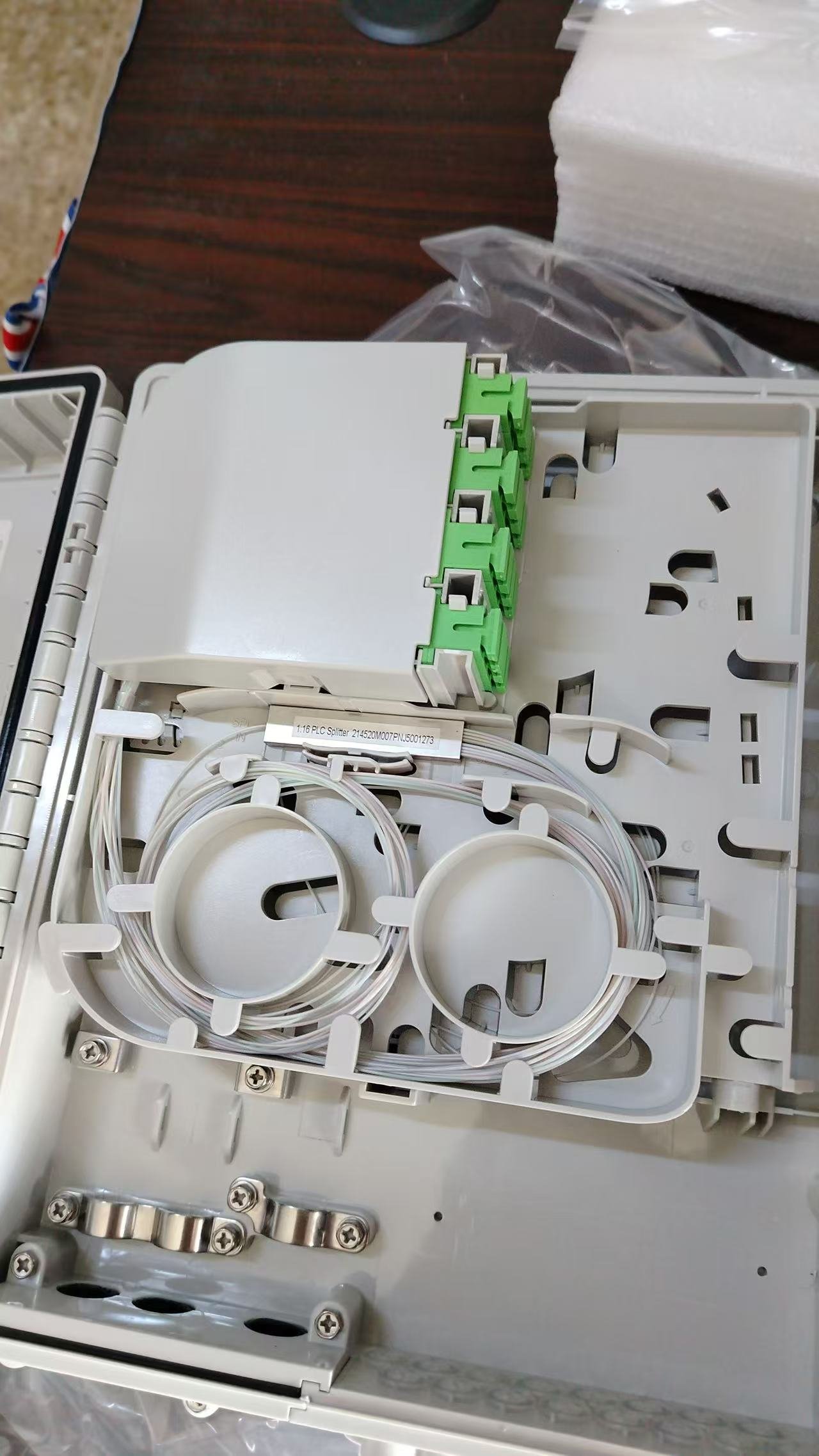

The internal layout provides dedicated routing paths for splitter leads and fiber reserves. Circular fiber-routing guides help maintain orderly bends, while the covered adapter area separates connection points from the working fiber-management area.
- Integrated 1:16 PLC splitter
- SC/APC adapter interface
- Organized routing for splitter leads and fiber slack
- Numbered optical-record label for field identification
Cable Entry and Subscriber Ports

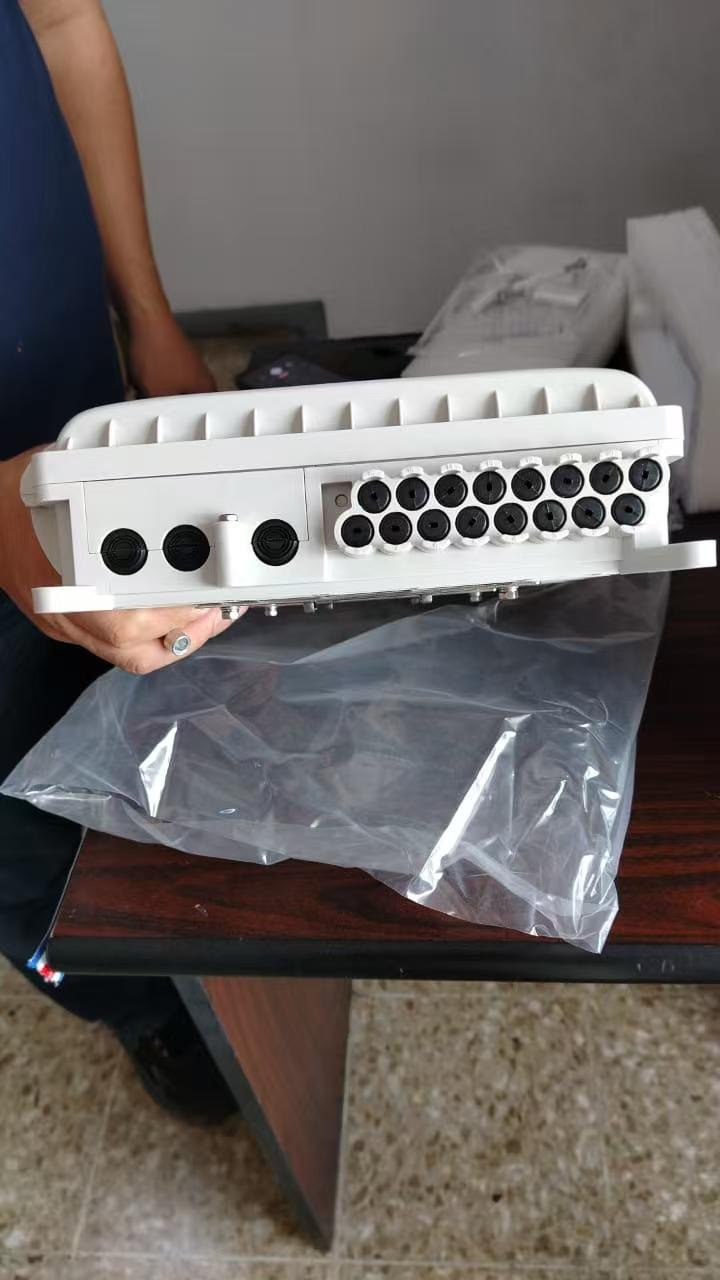

The product photographs show 16 sealed subscriber drop-port positions and separate cable-entry positions. Cable diameter compatibility, sealing plugs and the required mounting kit should be confirmed against the project cable structure before ordering.
Ordering Information
Specify the model, required quantity, feeder and drop-cable dimensions, mounting method, labeling and documentation requirements. This page records the supplied sample configuration. It supports IP65 protection, UL 94 flammability requirements and G.652.D / G.657.A1 / G.657.A2 / G.657.B3 single-mode fibers. Confirm housing material, cable dimensions, optical performance values and installation accessories for the final order.
Frequently Asked Questions
Which splitter is installed?
The supplied product label identifies one 1:16 PLC splitter.
Which connector interface is used?
The supplied configuration uses SC/APC connections.
What must be confirmed before ordering?
Confirm cable diameters, installation method, mounting accessories, IP65 and UL 94 documentation, housing material and required optical test data for the project.
Request a Quotation
Send your quantity and project requirements to sophie@aimifiber.com. Reference model GPX147-FAT2131SD-16G.
