Description

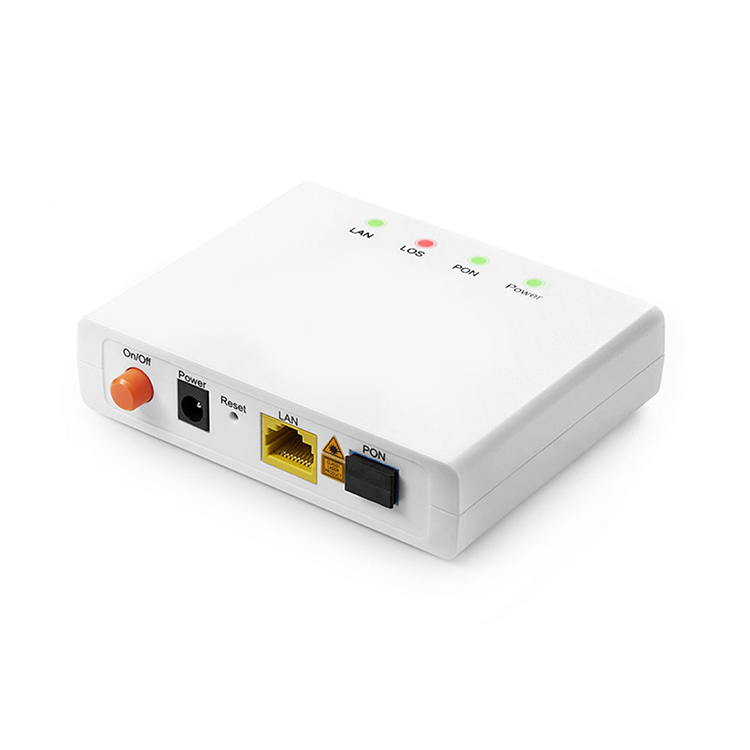

XPON EPON GPON ONU 1GE Single Port Optical Modem FTTH Support GEPON ONT | GPON EPON ONU | AIMIFIBER manufactured by AIMIFIBER.
Professional grade fiber optic product with reliable performance for telecom and data applications.
Specifications
| Size | 105mml(L) x85mm(W) x25mm(H) |
| GPON Upstream/downstream | 1.25Gbps/2.5Gbps |
| GPON Optical receive sensitivity | ≥-28dBm |
| GPON Continuous light power | 0.5dBm~+5dBm |
| Network coverage radius | 20KM |
| EPON Upstream/downstream | 1.25Gbps/1.25Gbps |
| EPON Optical receive sensitivity | ≥-27dBm |
| EPON Continuous light power | 0dBm~4dBm |
| Security | ONU authentication mechanism |
| Interface Type | SC-UPC/SC-APC |
| Operating temperature | 0°C~60°C |
| Operating humidity | 10%～85%(non-condensing) |
| Storage temperature | -40°℃～80°c |
| Storage humidity | 5%～95%(non-condensing) |
| Power supply | 12V/0.5A DC power interface size:2.1mm/5.5mm |
| Power Consumptio | ＜3 |
Features & Applications
- EPON ONU
- GPON ONU
- Optical Modem
- ONT
- XPON
- FTTH
Contact AIMIFIBER for custom specifications, bulk pricing, and OEM/ODM solutions.
