What are the key specifications of single-mode fiber optic cables?

Many professionals struggle to understand single-mode fiber cables. This confusion leads to delays in choosing correct cables and meeting performance targets. Let me break down their key specifications, so you can pick the right cable with confidence.

Single-mode fiber optic cables single-mode fiber optic cables¹ have a small core, typically around 9µm, and are designed to carry signals over long distances at higher bandwidths. They feature low attenuation benchmarks² and minimal dispersion. They use OS1 or OS2 OS1 or OS2 classifications to define their performance in different installation environments and distances.

I remember when I first managed a project for a data center client in the United States who struggled to choose the right single-mode cable type. He asked me countless questions on OS1, OS2, and other technical details. After we clarified the basics, we secured his project’s stability, performance, and cost-effectiveness. In this post, I will simplify these details, just like I did for him, and hopefully help you navigate your own fiber decisions confidently.

What are the characteristics of single mode fiber optic cable?

I often meet project managers who ask about single-mode fiber characteristics. They want clear, simple facts. They want to know core sizes, bandwidth capabilities, attenuation, and how these cables perform in practical scenarios. Let’s focus on the key features that define single-mode fiber and help you choose effectively.

Single-mode fiber optic cables have a core diameter of about 9µm, operate at wavelengths like 1310nm or 1550nm, deliver very low attenuation, and support long-distance transmissions without losing signal quality. They maintain stable performance, making them ideal for backbone networks and high-speed data centers.

When I chat with customers, I often compare single-mode fibers to narrow highways. The small core makes the light travel in a single path, reducing dispersion and maintaining signal integrity over long spans. This is why single-mode is often found in large-scale telecom backbones, inter-building links, and international submarine cables.

Key Characteristics Breakdown

Let’s break it down further.

Practical Example

I once worked with a telecom provider needing a reliable backbone link over 40 kilometers. They chose OS2 single-mode cables. The low attenuation at 1550nm wavelength made their new network stable. They saw reduced downtime and better data integrity. As a result, they saved on maintenance and repeaters.

Consider the Installation Environment

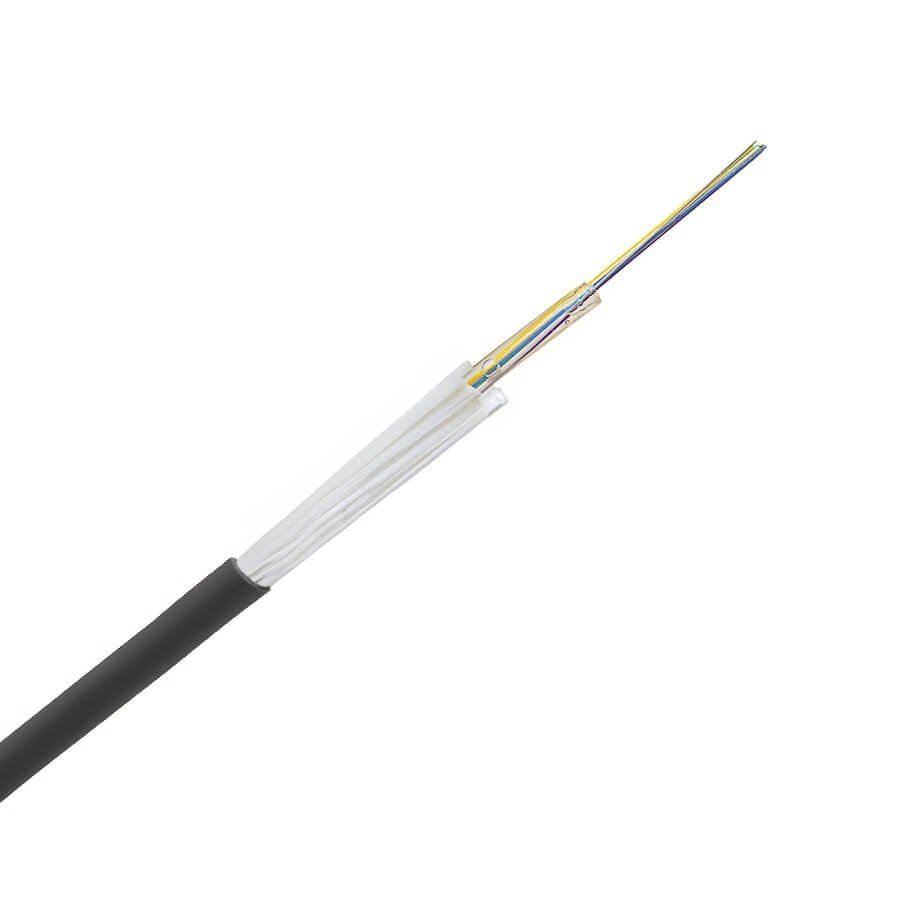

Single-mode cables come in various jacket materials. Some are rugged and armored for direct burial, while others suit indoor riser environments. I’ve seen customers in the Middle East select ADSS ADSS cables³ for aerial applications to withstand harsh climates. Having a variety ensures that whatever the environment, a suitable single-mode option exists.

What does OS1, OS2, om1, om2, om3, and om4 mean?

These designations can feel like code words, but they are straightforward once you understand the basics. They define performance categories for fiber cables. OS1 and OS2 refer to single-mode fibers, while OM1 through OM4 relate to multimode fibers. Let’s clarify these terms so you can pick the right type.

OS1 and OS2 are single-mode categories; OS1 suits indoor tight-buffered constructions for shorter distances, while OS2 suits loose-tube outdoor or universal cables for longer distances. OM1, OM2, OM3, and OM4 apply to multimode fibers, offering varying bandwidth and reach for shorter-distance applications like LANs.

In my early career, I had trouble explaining these designations to customers. Many believed OS and OM were interchangeable. They are not. OS stands for “Optical Single-mode,” and OM stands for “Optical Multimode.” Understanding these terms helps in selecting the right cable for your network’s structure and performance demands.

Distinguishing OS1 and OS2

• OS1: Indoor, tight-buffered, typically used in campus networks, up to about 2 km at 1310nm.
• OS2: Outdoor, loose-tube, optimized for longer distances, often over 10 km at 1310nm and beyond 40 km at 1550nm.

Understanding OM1-OM4

These apply to multimode fibers with varying core sizes (e.g., 50µm or 62.5µm) and bandwidth capabilities:

Why Does This Matter?

In real-world conditions, if you run a long backbone line outdoors, OS2 single-mode is the logical choice. For short-distance internal data center runs, OM4 multimode might be a better fit. If you pick the wrong type, you may encounter higher attenuation, reduced bandwidth, or unnecessary costs.

What are the main differences between OS1 and OS2 single-mode cables?

Customers often ask me about OS1 vs. OS2. They want to know the actual differences beyond naming. They need to know installation environments, attenuation levels, and performance ranges. Let’s highlight these differences to help you choose the right cable for your project.

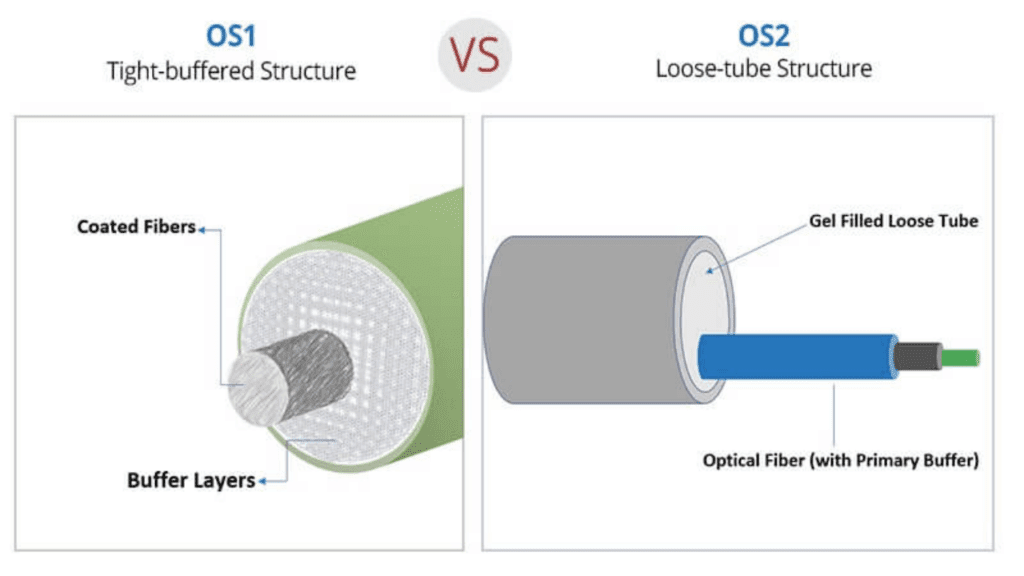

OS1 is typically a tight-buffered, indoor cable with slightly higher attenuation, suitable for shorter links (up to 2 km). OS2 is usually a loose-tube, outdoor cable with lower attenuation, supporting much longer distances (often 10 km+). OS2 is often the go-to for long-haul applications.

In one of my recent projects in Spain, a partner from Amper Group asked me this exact question. Their project needed stable performance over many kilometers. After discussing attenuation and construction differences, they chose OS2. Months later, they were pleased with fewer repeaters and stable data rates.

Key Differences Table

Practical Insights

• If you have a small campus network, OS1 might be enough.
• If you operate a telecom line spanning multiple cities, OS2 saves money on amplification.
• OS2’s lower attenuation at standard wavelengths means better return on investment and future-proofing.

How does the core size of single-mode fiber affect its performance?

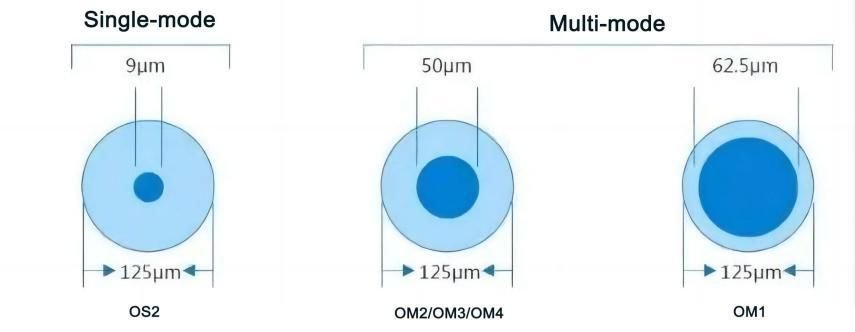

Core size matters. Single-mode fibers have a small core diameter, around 9µm, which allows a single light mode to propagate. This reduces signal spread. But how exactly does this small core enhance performance? Let’s look closer.

A single-mode fiber’s small 9µm core ensures light travels in essentially one mode. This lowers modal dispersion and reduces signal loss over distance. The result is cleaner signals at the receiver, higher bandwidth potential, and stable performance for long-haul networks and high-speed data centers.

I remember explaining this to a customer from Brazil who managed fiber deployments for Amphenol TFC. They asked why core size couldn’t be larger to simplify coupling. The answer is that a larger core would allow multiple light modes, increasing dispersion. The single small core keeps things “in line,” ensuring reliable, predictable transmission.

More on Performance Factors

The small core works best with laser sources that emit coherent light. These stable lasers at wavelengths like 1310nm or 1550nm interact perfectly with the tiny core. The fiber then delivers a sharp, focused signal many kilometers away. As a result, network operators can send high-speed data streams with low latency.

Example Scenario

Imagine a data center link that needs 100GbE transmission over 10 km. With a single-mode core, you get consistent performance without complex modal conditioning. The network engineer can trust the link to deliver stable throughput, even with changing environmental conditions or incremental upgrades over time.

Table: Impact of Core Size

What are the typical applications for OS1 single-mode cables?

Many first-time buyers think single-mode automatically means long distance. OS1, however, is often for shorter links. Let’s clarify where OS1 shines and why you might choose it for certain installations.

OS1 single-mode cables excel in indoor or campus environments. They fit building backbones, connecting data closets, and linking equipment over a few kilometers. They are often chosen for stable performance in controlled conditions, offering consistent bandwidth for enterprise or small telecom setups.

A client I worked with in the United States sought a cost-effective backbone within their corporate campus. They did not need to transmit signals over massive distances. OS1’s performance range matched their needs perfectly. By choosing OS1, they got reliable connectivity without overpaying for the extra capabilities of OS2.

Common OS1 Use Cases

• Campus Backbones: Linking multiple buildings on a single corporate site.
• Inside Data Centers: Connecting switches, routers, and distribution frames over moderate distances.
• Small Metropolitan Networks: Providing stable connectivity within a confined city area.
• Telecom Exchanges: Local loops where the distance is not extreme.

Table: Typical OS1 Application Scenarios

If a network manager requires stable connectivity between equipment rooms in the same building, OS1 is a great fit. It provides a stable link at a moderate cost. There’s no need for OS2’s long-distance capabilities if you never exceed a few kilometers.

How does the attenuation of OS2 cables compare to OS1 cables?

Attenuation is a critical factor. Everyone wants to minimize signal loss over distance. OS2 is known for better attenuation specs than OS1. Let’s see how they differ and what this means for your long-haul applications.

OS2 typically offers attenuation around 0.4 dB/km at 1310nm, while OS1 may reach about 1.0 dB/km. This lower attenuation allows OS2 cables to support longer distances without repeaters, saving costs and improving network reliability.

I remember explaining this difference to a customer in Zambia who was building a long-distance fiber link. He was concerned about losing signal strength over many kilometers. By choosing OS2, he reduced the number of repeaters needed. In turn, he saved money and simplified maintenance.

Comparing Attenuation Values

Lower attenuation means you can push signals farther without regeneration. In long-haul telecom networks, fewer repeaters translate to reduced capital expenditure and simpler maintenance schedules. With OS2, you get more flexibility to expand your network as demands grow.

What are the maximum bandwidths for single-mode fiber cables at different wavelengths?

Bandwidth capacity is crucial for modern networks. Single-mode fibers handle high data rates, supporting 10GbE, 40GbE, 100GbE, and beyond. But how does wavelength come into play? Let’s clarify the maximum bandwidth potentials at different wavelengths.

Single-mode fibers often support up to 10Gbps and beyond at both 1310nm and 1550nm wavelengths over long distances. They can scale to 40GbE, 100GbE, and even 400GbE with the right transceivers. The fiber itself is rarely the limiting factor; it’s more about the transceiver and system design.

I once worked with a data center in the U.S. They needed a future-proof solution that could scale. I explained that single-mode fiber inherently offers massive bandwidth potential. The limitation usually comes from the transmitting equipment, not the cable. With coherent optics and by using Dense Wavelength Division Multiplexing (DWDM)⁴, single-mode fibers can carry multiple 100GbE channels simultaneously.

Bandwidth by Wavelength Table

By using DWDM, multiple wavelengths can run through a single fiber. Each wavelength can carry 10GbE, 100GbE, or more. For example, a single OS2 cable can handle dozens of these wavelengths, massively increasing total bandwidth capacity.

A data center client expanded from 10GbE links to 100GbE links over the same OS2 fiber backbone. The fiber didn’t need upgrading, only the transceivers. This agility saved them both time and money. They scaled bandwidth by just swapping out the modules at each end.

Conclusion

Selecting the right single-mode fiber optic cable involves understanding OS1 vs. OS2, core sizes, attenuation, and suitable applications. I have spent years guiding clients through these details. For shorter, indoor links, OS1 often works. For long-haul, choose OS2. The small core diameter ensures stable, high-bandwidth performance. OS1 and OS2 fit different needs, and knowing the differences saves money and trouble.

When considering future bandwidth requirements, remember that single-mode fibers can scale far beyond current data rates. They are future-proof, supporting technologies like DWDM that multiply capacity without new cable deployments. Wavelength choice—1310nm or 1550nm—also matters for optimal performance.

No matter if you are a telecom operator in Spain, an ISP in Brazil, or a data center manager in the U.S., understanding single-mode fiber specifications helps you make informed decisions. At Aimit Communication (Shenzhen) CO., LTD, I, Sophie Wang, often help customers like Bayan or Fernando find solutions that match their unique requirements. My goal is to simplify these details. By focusing on the fundamentals and applying them to your scenario, you gain confidence, reduce costs, and ensure your network runs smoothly.

Feel free to reach me at sophie@aimifiber.com, or visit our website at https://aimifiber.com/. Our brand, AIMIFIBER, offers custom cable solutions, OEM/ODM services, and reliable fiber products. We understand the global telecom landscape and can support complex deployments with full technical backing. Whether you need FTTH drop cables, MPO/MTP trunk cables, or a comprehensive data center solution, we aim to offer clarity, performance, and trust in every interaction.
